Revolutionize athermalization with ALLVAR Alloys, the only Negative Thermal Expansion Metals in the World.
Passive Athermalization made easy.
The process of removing thermal effects from a system is called athermalization. Creating an athermal design that actively athermalizes a system is challenging, and often increases the weight and complexity of a system. Passive athermalization achieves the same results as an active system, but without using powered systems or requiring outside feedback. It requires iterative changes and tweaks to hone the thermal changes of individual components in a design, so that they together work in unison to passively counteract thermal effects. These systems are challenging to design, manufacture, and test. ALLVAR Alloys makes this process much easier.
Targeted Thermal Expansion.
Negative thermal expansion ALLVAR Alloys allow engineers and designers to target a specific thermal expansion for their system. Designers select a specific thermal expansion, from –30 ppm/°C to a joined materials positive coefficient of thermal expansion, and incorporate a calculated length of ALLVAR Alloy 30 to hone in on a target CTE. Being able to tailor a specific CTE flips the design paradigm on its head.
Products
NTE SPACERS
Maintaining performance and structural integrity of optical systems over a wide temperature range (passive athermalization) has been a practical and technical struggle for decades. Eliminate unreliable optical performance by simply replacing traditional athermalization solutions with the only negative CTE alloy in the world, ALLVAR Alloy 30. This negative CTE innovation renders traditional design paradigms inefficient and enables smaller, lighter optical system designs that were previously impossible.

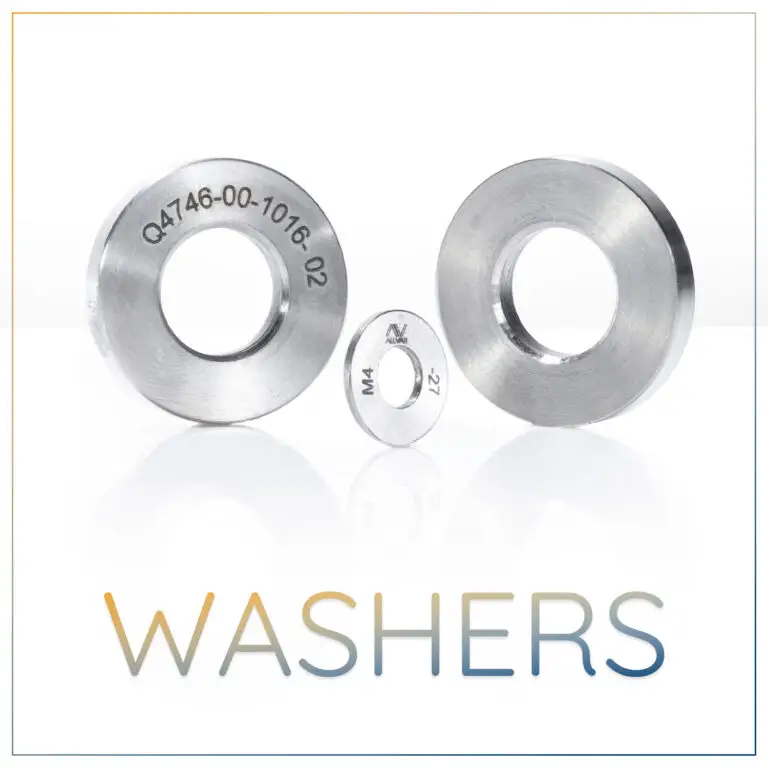

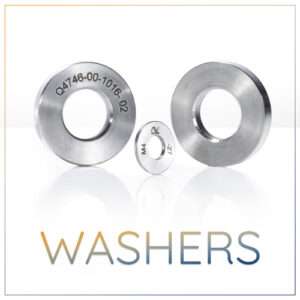

WASHERS
Drastic temperature changes and thermal cycling can cause brutal wear and tear on a variety of fastened assemblies. When tight margins of safety create a near-unobtainable preload requirement, securing these assemblies can be challenging. Negative thermal expansion alloys can help solve your tough thermal fastening issues with constant force-load washers, ensuring a safe and reliable system with joints that overcome wide temperature ranges.
ULTRA-STABLE STRUTS
Negative Thermal Expansion ALLVAR Alloys can compensate for the expansion and contraction of other materials. ALLVAR Alloy 30 can be used to create tailored thermal expansions in metering structures, telescopes, or high precision scientific instruments. The ultra-stable struts shown above were designed with ALLVAR Alloy 30, titanium 6Al4V, and invar and have a near zero CTE at room temperature.
ALLVAR Alloys solve problems related to:
|
|
Component CTE Mismatch |
|
SWaP-C Challenges |
|
Fastener Slip |
|
|
Optical Tolerancing |
|
CTE Control |
|
Fastener Fatigue |
|
|
Maintaining Performance at Temperature |
|
Narrow Safety Margins |
|
Fastener Loosening |
|
|
Cryogenics |
|
Reliability |
|
Vibration |
INDUSTRIES SERVED
Spacecraft
Aerospace
ISR
Energy
Cryogenics
Defense
Optics
Scientific Instrumentation
Industrial
Telescopes
